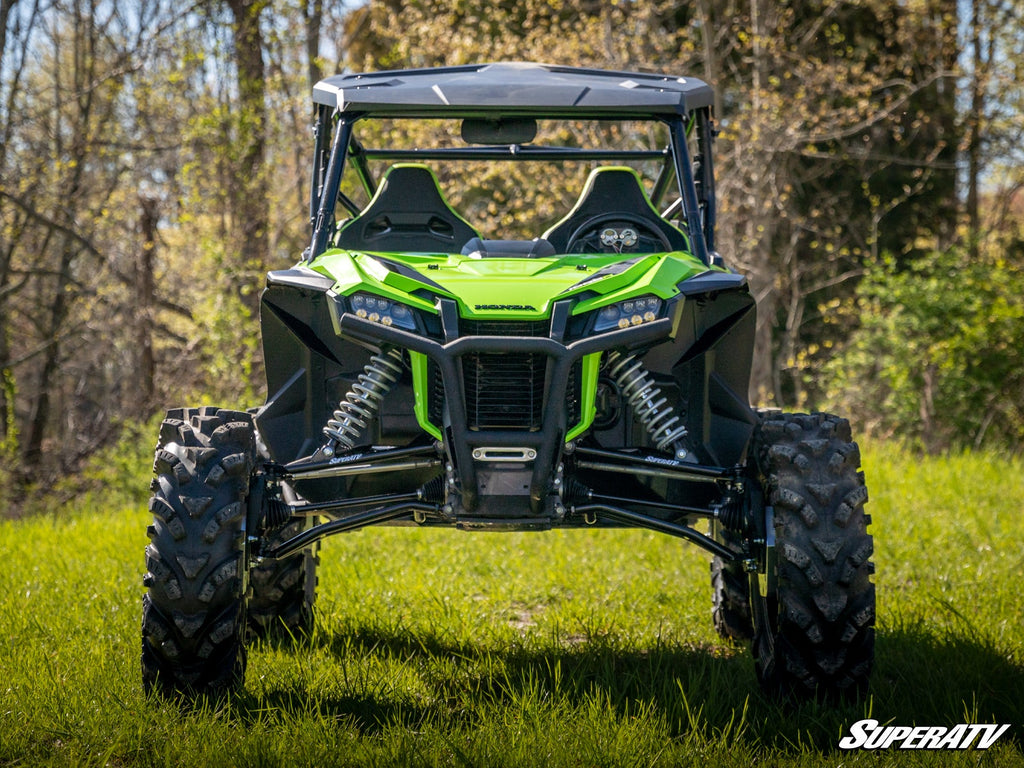

Honda Talon 1000R 6" Single-Idler Portal Gear Lift

6-inch single-idler GDP portals for the Honda Talon 1000R

SuperATV’s 6-inch GDP Portal Gear Lift adds clearance at the hub while placing the gear reduction at the wheels to reduce stress on the transmission, prop shaft, axles, and differential. This listing covers the verified single-idler, no-lift-kit configurations imported for MOB, with your choice of 30% or 45% reduction, cast or billet housings, and an optional frame stiffener.

Choose your setup

• 30% reduction: responsive trail performance with added torque
• 45% reduction: stronger reduction for larger tires and demanding terrain
• Cast aluminum: durable value-oriented housing
• Billet aluminum: premium machined housing
• Frame stiffener: recommended for hard use with portals and large tires

Kit contents

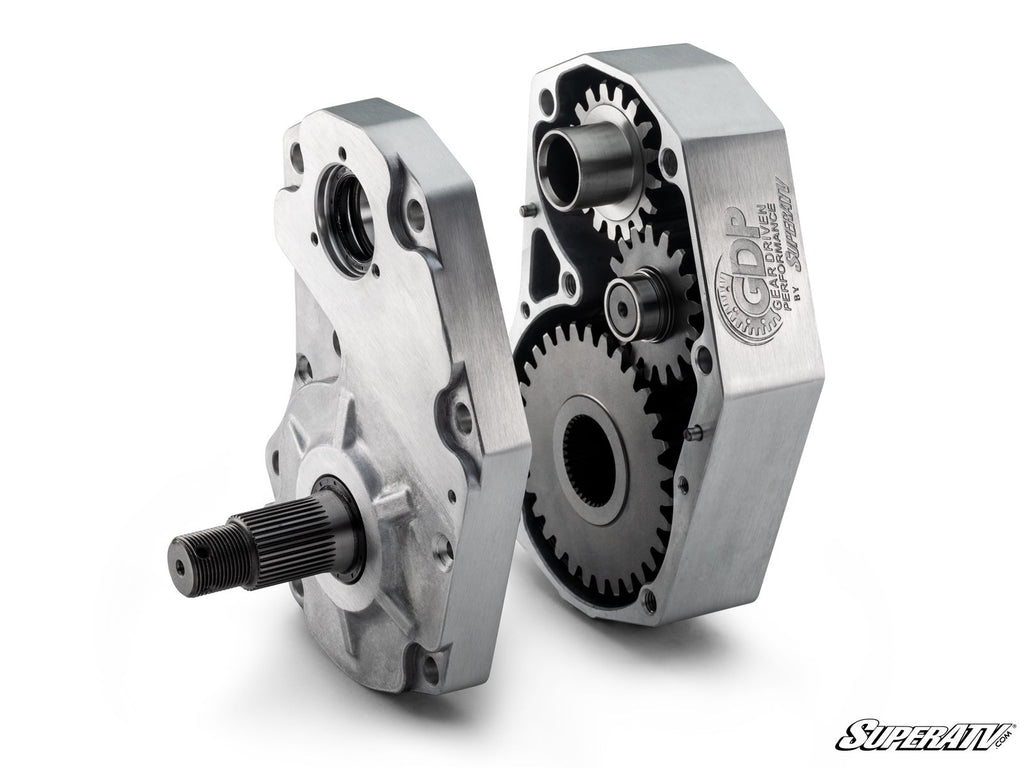

Includes four assembled portal hub boxes with 9310 gears, universal hubs and slotted rotors, steel backing plates, caliper mounting hardware, steering arms, rear adapter plates, preinstalled lower ball joints, extended brake lines, and required installation hardware. The frame stiffener is included only when selected.

Fitment

• Honda Talon 1000R: 2019+
• Honda Talon 1000R-4: 2023+

Wheel requirements

• 18-inch or larger wheels required
• 18-inch wheels: maximum 4.5-inch backspacing
• 20-inch and larger wheels: maximum 5-inch backspacing
• Minimum 3.25-inch wheel center hole, or a 1-inch wheel spacer is required

Important: These verified SKUs are single-idler configurations for machines without an existing lift kit. Confirm machine, wheel, and tire compatibility before ordering.
